Introduction
Integrated Circuit (IC) packaging is a critical stage in semiconductor manufacturing, directly affecting device reliability, electrical performance, and long-term stability. While advanced fabrication processes often receive the most attention, many real-world failures originate from packaging-related defects—such as cracks, delamination, poor bonding, or mechanical deformation.
Effective IC package inspection relies heavily on optical microscopy. However, different defect types require different observation methods, magnifications, and illumination techniques. Selecting the right microscope is therefore not a matter of choosing the highest magnification, but of understanding what needs to be inspected, where the defect is likely to occur, and how it should be visualized.
This guide explains why IC package inspection is essential, outlines common defect categories, and compares three major microscope types—Metallurgical Microscopes, Coaxial Illumination Optical Microscopes, and Digital Inspection Microscopes—helping engineers make informed inspection decisions.
Selecting the right microscope is not simply about maximum magnification, but about matching optical performance to the actual inspection task.
For broader semiconductor workflows including wafer, chip, and packaging analysis, see our Semiconductor Inspection Application Cases.
Table of Contents
Why IC Package Inspection Is Essential
IC packages serve as both electrical interfaces and mechanical protection for semiconductor dies. Defects introduced during packaging or assembly can compromise performance even when the silicon die itself is defect-free.
Key reasons IC package inspection is essential include:
Reliability assurance: Packaging defects are a leading cause of early-life failures in electronics.
Electrical integrity: Issues such as poor wire bonding or solder joint defects can result in intermittent connections.
Thermal performance: Delamination or voids reduce heat dissipation efficiency.
Mechanical robustness: Cracks, warpage, or lead deformation affect assembly yield and product lifetime.
Process monitoring: Visual inspection helps identify upstream process deviations before yield loss escalates.
According to industry failure analysis studies, packaging-related issues can account for 30–40% of field failures, particularly in high-density and fine-pitch ICs. This makes systematic optical inspection a foundational step in quality control.
Common Defect Categories in IC Package Inspection

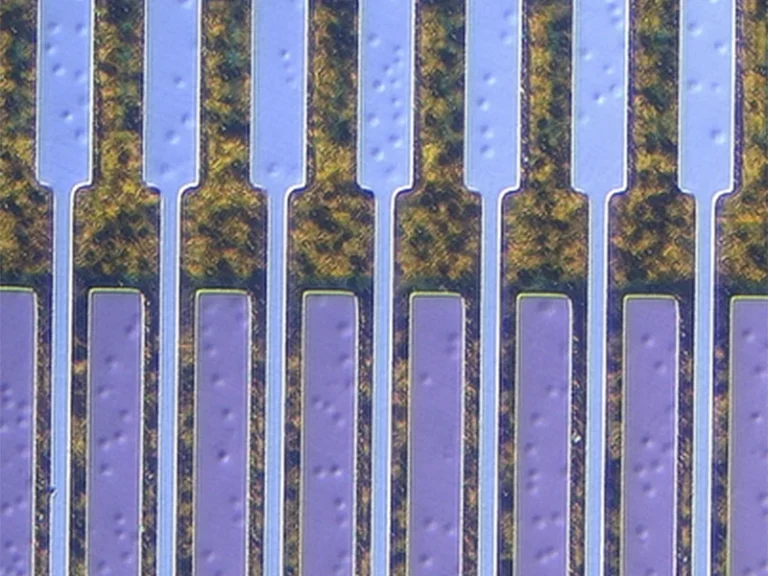

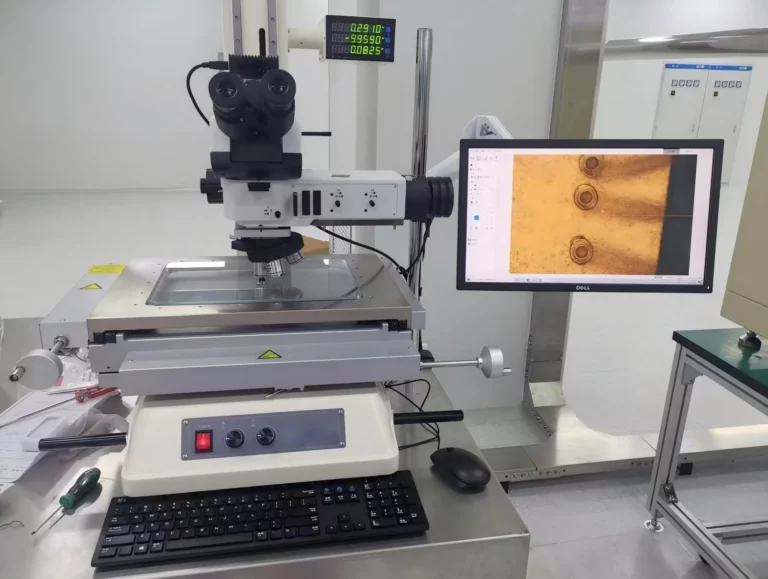

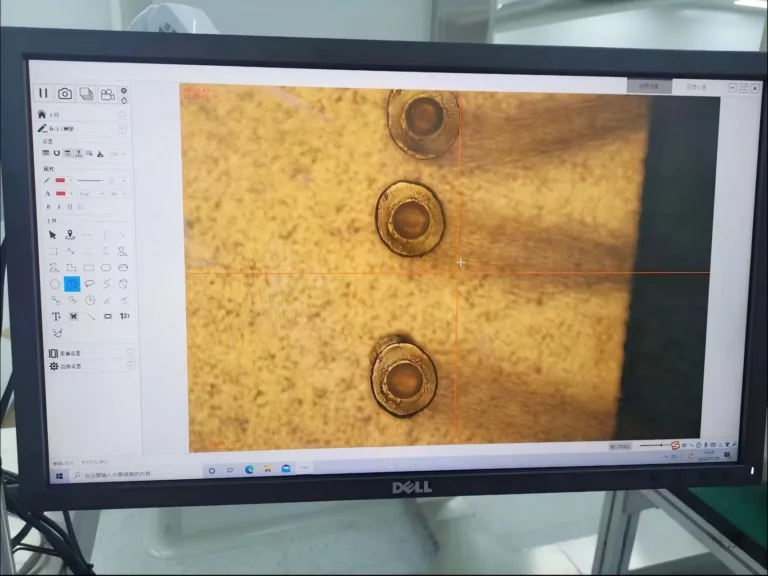

1. Wire Bonding Defects
Wire bonding remains one of the most failure-sensitive processes in IC packaging. Even minor deviations can lead to intermittent electrical contact or premature failure.
Typical wire bonding defects include:
Broken or lifted bond wires
Irregular wire loop height or deformation
Heel cracks at the bond interface
Inconsistent bond placement
Studies from semiconductor reliability testing indicate that wire bond-related defects account for a substantial share of early-life package failures, particularly under thermal cycling conditions.
Inspection focus:
Bond wire shape and continuity
Bond pad attachment quality
Clearance between adjacent wires
2. Lead Frame and Lead Integrity Defects
Lead frames provide electrical connection and mechanical support, especially in QFN and leaded packages.
Common issues include:
Bent or misaligned leads
Surface scratches or oxidation
Incomplete plating
Micro-cracks near lead roots
These defects can affect solderability, electrical continuity, and mechanical strength during board assembly.
Inspection focus:
Lead geometry consistency
Surface condition and finish
Edge and root integrity
3. Solder Joint and Ball Defects
In BGA and CSP packages, solder balls form the primary electrical and mechanical interface with the PCB.
Typical solder-related defects:
Missing or deformed solder balls
Voids and inclusions
Surface contamination
Inconsistent ball size or spacing
While X-ray inspection is often used for internal void analysis, optical inspection remains essential for surface condition evaluation and process verification.
Inspection focus:
Ball shape and uniformity
Surface cleanliness
Ball-to-pad alignment
4. Package Surface Defects
Package surfaces, including mold compound and exposed die areas, can exhibit defects that affect thermal performance and environmental resistance.
Common surface defects:
Scratches and abrasions
Surface contamination
Delamination marks
Molding compound cracks
These defects are often associated with handling, singulation, or molding process variation.
Inspection focus:
Surface uniformity
Crack initiation points
Signs of delamination or stress
5. Edge and Corner Cracks
Package edges and corners are mechanically vulnerable, especially after singulation or during board-level assembly.
Typical issues include:
Micro-cracks at package corners
Chipping along edges
Stress-induced fractures
Such defects may not cause immediate failure but can propagate under thermal or mechanical stress.
Inspection focus:
Edge continuity
Crack length and orientation
Correlation with handling or process steps
Which Microscope Types Are Suitable for Different IC Package Defects?
Metallurgical Microscope
Metallurgical microscopes are designed for high-magnification, high-resolution inspection using reflected light. They are particularly effective for observing fine structural details on opaque materials.
Best suited for detecting:
Wire bonding quality and bond pad integrity
Micro-cracks near bond pads or die edges
Surface micro-defects after cross-sectioning
Die attach voids and material interfaces
Fine scratches or corrosion on metallic surfaces
These microscopes typically operate from 50× up to 1000×, making them ideal for failure analysis and detailed inspection.
For bonding inspection, material interface analysis, and package defect investigation, engineers often use dedicated Metallurgical Microscopes for Semiconductor Inspection.
Coaxial Illumination Optical Microscope
Coaxial illumination microscopes use on-axis lighting to minimize shadows and suppress reflections, which is especially useful for highly reflective or flat surfaces commonly found in IC packages.
Best suited for detecting:
Surface cracks on mold compound
Defects on polished or reflective package areas
Bond pad surface irregularities
Laser marking quality and contrast issues
Surface contamination that is hard to see under ring light
Their ability to highlight subtle surface variations makes them indispensable for surface integrity evaluation.
For reflective package surfaces and fine surface crack detection, high-magnification systems such as a 1000X Coaxial Illumination Microscope are commonly used.
Digital Inspection Microscope
Digital inspection microscopes operate at low to mid magnifications, but offer a wide field of view, fast observation, and digital documentation capabilities.
Although they are not intended for ultra-fine structural analysis, they play an important role in first-level screening and general inspection.
Best suited for detecting:
Overall package appearance defects
Lead alignment and coplanarity issues
Connector and pin positioning
Mold compound cracks visible at low magnification
Marking readability and traceability codes
Mechanical damage or deformation
In practical workflows, digital inspection microscopes are often used for rapid visual screening, followed by higher-magnification systems for detailed analysis when needed.
Comparison of Microscope Types for IC Package Inspection
| Feature / Aspect | Digital Inspection Microscope | Coaxial Illumination Microscope | Metallurgical Microscope |
|---|---|---|---|
| Typical Magnification | 5× – 200× | 50× – 1000× | 50× – 1000× |
| Field of View | Wide | Medium | Narrow |
| Best For | General appearance, alignment, screening | Reflective surface defects | Fine structural and material defects |
| Surface Reflection Control | Moderate | Excellent | Good |
| Detail Resolution | Moderate | High | Very High |
| Inspection Speed | Very Fast | Medium | Slower |
| Typical Use Stage | First-level inspection | Surface defect analysis | Failure analysis & detailed inspection |
How to Choose the Right Microscope for IC Package Inspection
1. Define the Primary Defect Types
Start by identifying whether the focus is on:
External appearance
Surface integrity
Fine internal structures
2. Match Magnification to Inspection Goals
Higher magnification is not always better. Excessive magnification can reduce efficiency and overlook broader issues.
3. Consider Surface Characteristics
Highly reflective or polished surfaces benefit significantly from coaxial illumination.
4. Inspection Workflow Requirements
Inline or rapid screening → Digital inspection microscope
Detailed defect localization → Coaxial or metallurgical microscope
5. Documentation and Traceability
Digital imaging and measurement capabilities may be critical for quality records and failure reports.
In many cases, a combination of microscope systems provides the most effective and flexible inspection strategy.
Conclusion
IC package inspection involves a wide range of defect types, from wire bonding irregularities and solder ball defects to surface cracks, contamination, and package edge damage.
Because different defects require different imaging conditions, there is no single microscope that fits every inspection task.
Digital inspection microscopes are often used for fast visual screening and documentation. Coaxial illumination microscopes are ideal for reflective surface inspection and subtle crack detection. Metallurgical microscopes are preferred for high-resolution structural analysis, bonding evaluation, and failure investigation.
Choosing the right microscope for IC package inspection depends on understanding the defect type, required magnification, illumination characteristics, and inspection workflow—not simply selecting the highest magnification available.
For engineers working across broader semiconductor inspection tasks such as wafer analysis, chip inspection, and package evaluation, explore our complete semiconductor microscope selection guide.
FAQ about IC Package Inspection
Q1. Is high magnification always necessary for IC package inspection?
No. Many defects such as alignment issues, cracks, and marking problems are visible at low to mid magnifications.
Q2. Can digital inspection microscopes be used for semiconductor inspection?
Yes, especially for appearance inspection, alignment checks, and first-stage screening.
Q3. What defects are best detected using coaxial illumination?
Surface cracks, reflective surface irregularities, and subtle contamination.
Q4. When is a metallurgical microscope required?
For fine structural analysis, bonding inspection, and failure analysis requiring high resolution.
Q5. Can one microscope cover all IC package inspection needs?
In most cases, no. Different defect types require different optical approaches.
Q6. How important is illumination compared to magnification?
Illumination is equally important. Proper lighting often reveals defects that magnification alone cannot.
Q7. Are these microscopes used in production or lab environments?
They are used in both, depending on inspection depth and speed requirements.
Q8. How does inspection strategy change with advanced packaging?
Higher integration often increases reliance on surface-sensitive and high-resolution inspection systems.
