Introduction
Whether inspecting fine-pitch PCB assemblies, measuring miniature electronic components, or documenting defects during quality control, maintaining a consistently sharp image is essential. However, achieving accurate focus becomes increasingly challenging as magnification increases and the depth of field becomes shallower.
Traditional manual-focus microscopes require continuous adjustment whenever the inspection height changes or the operator moves to another component. For engineers performing repetitive inspection tasks, frequent refocusing not only reduces efficiency but can also introduce inconsistencies between inspections.
To address these challenges, many manufacturers are adopting high-performance autofocus digital microscopes that automatically maintain image sharpness across different working distances and sample heights. By combining optical imaging, intelligent autofocus algorithms, and digital measurement capabilities, these systems help improve inspection efficiency while reducing operator fatigue during long inspection sessions.
If you’re evaluating a modern solution for electronics inspection, PCB quality control, or precision manufacturing, exploring the capabilities of a professional 4K autofocus digital microscope can provide a useful reference before selecting a system for your workflow.
In this guide, you’ll learn how autofocus digital microscopes work, where they are most effective, their advantages over conventional systems, and the key factors to consider before choosing one for industrial inspection.
Table of Contents
What Is an Autofocus Digital Microscope?
An autofocus digital microscope is a digital imaging system that automatically adjusts focus to maintain a sharp image without manual intervention. By combining optical lenses, image sensors, and intelligent focusing algorithms, it enables fast and accurate inspection of objects with different heights, making it particularly suitable for PCB inspection, electronics repair, semiconductor analysis, and precision manufacturing.
Unlike conventional microscopes that require operators to manually rotate a focusing knob whenever the inspection surface changes, autofocus systems continuously monitor image clarity and automatically optimize focus in real time.
This capability becomes increasingly valuable when inspecting:
- PCB assemblies with components of different heights
- Solder joints on fine-pitch packages
- Semiconductor devices with micron-scale structures
- Precision-machined parts requiring dimensional verification
- Samples that need frequent movement during inspection
As electronic assemblies continue to become smaller and more densely populated, autofocus technology has evolved from a convenience feature into an important productivity tool for modern industrial inspection.
How Does an Autofocus Digital Microscope Work?
Although different manufacturers implement autofocus differently, most industrial autofocus digital microscopes follow a similar workflow.
Image Acquisition
The microscope continuously captures high-resolution images through a digital image sensor while monitoring image sharpness.
Image Sharpness Analysis
Instead of relying solely on mechanical position, the software evaluates image contrast, edge definition, and high-frequency detail to determine whether the current image is in optimal focus.
Modern autofocus algorithms may analyze thousands of pixels simultaneously, allowing the system to respond quickly even when observing complex PCB assemblies or reflective metal surfaces.
Automatic Lens Adjustment
Once the software detects that image sharpness has decreased, the motorized optical system automatically adjusts the focal position until maximum clarity is restored.
This process typically takes only fractions of a second and is often fast enough to appear seamless during live inspection.

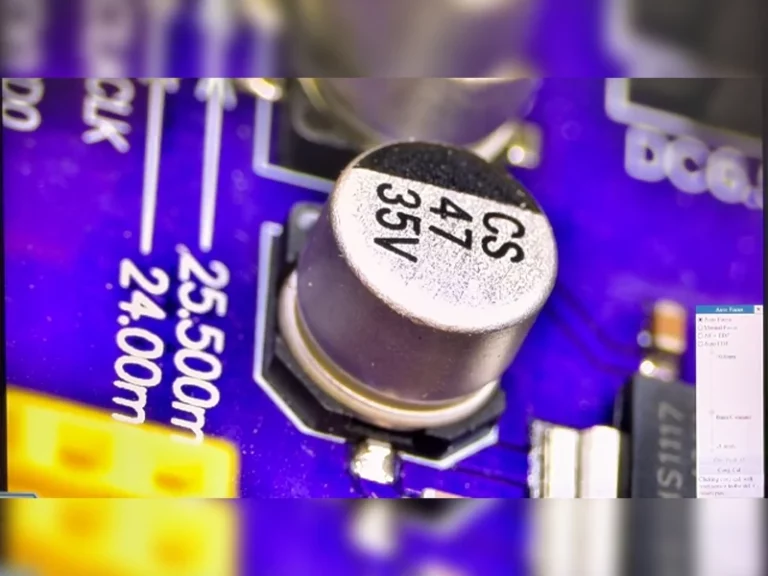

Continuous Focus During Inspection
Unlike single-shot autofocus commonly found in consumer cameras, industrial autofocus systems are designed for continuous inspection.
As the sample moves or the inspection area changes, the microscope continuously updates focus, allowing engineers to maintain image clarity without interrupting the workflow.
This is particularly useful when inspecting:
- SMT production lines
- PCB failure analysis
- Electronic component verification
- Incoming quality inspection
- Laboratory documentation
Why Is Autofocus Becoming More Important in Industrial Inspection?
The demand for autofocus microscopy has increased alongside several major trends in electronics manufacturing.
As component packages continue to shrink—from traditional SOIC devices to fine-pitch QFN, BGA, and 0201 passive components—the available depth of field becomes increasingly limited at higher magnifications. Even slight variations in sample height can cause critical inspection areas to fall out of focus.
According to industry reports from organizations such as IPC and SMTA, higher component density and increasing PCB complexity have made optical inspection a more demanding task, particularly in applications involving quality assurance, failure analysis, and electronics assembly. These trends have encouraged wider adoption of digital imaging technologies that improve inspection consistency and reduce operator dependence.
Autofocus technology helps address these challenges by maintaining image clarity automatically, enabling inspectors to spend less time adjusting focus and more time evaluating product quality.

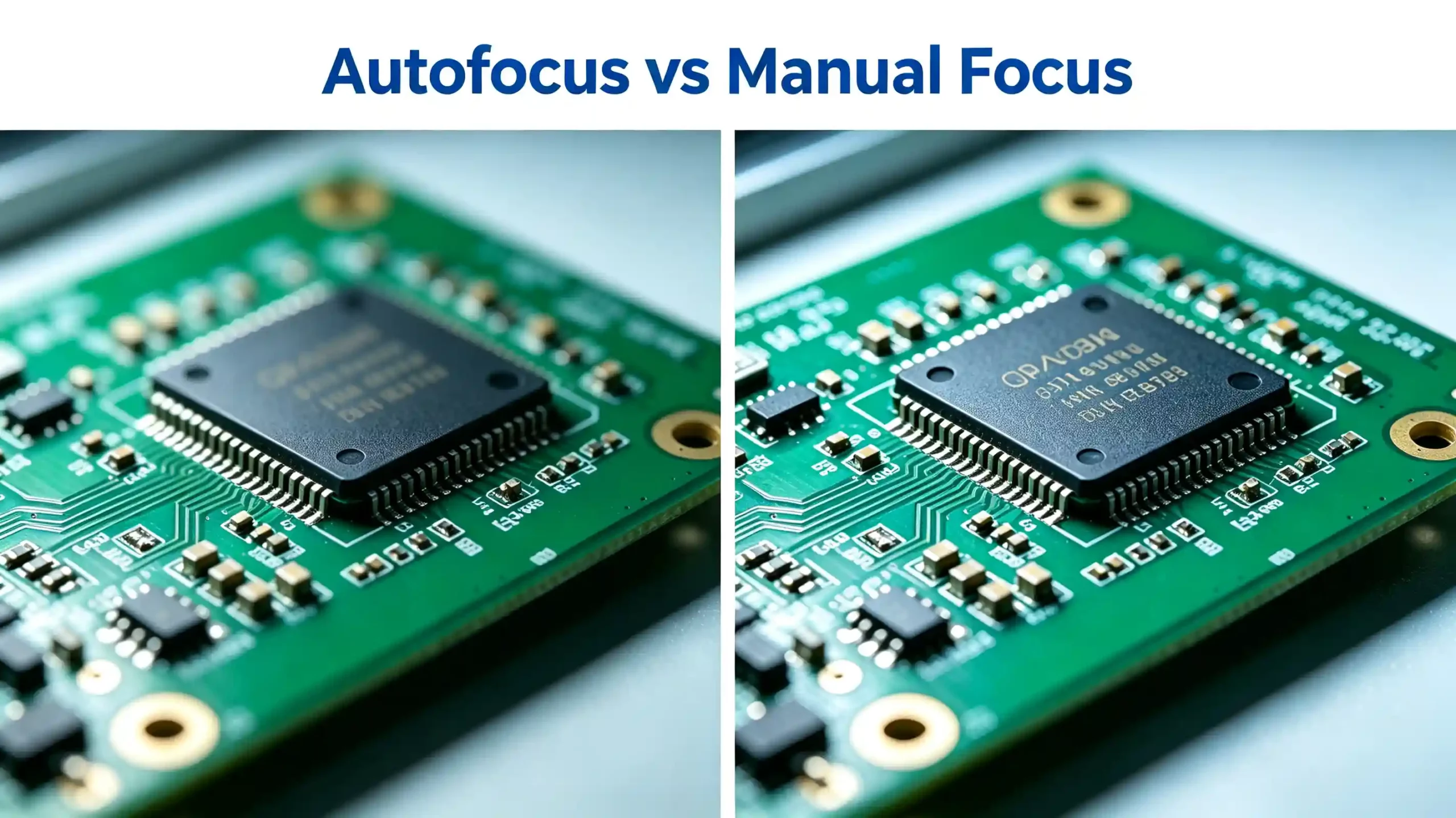

Manual Focus vs Autofocus: A Brief Comparison
While both manual-focus and autofocus microscopes have their place, they are designed for different inspection workflows.
| Feature | Manual Focus | Autofocus Digital Microscope |
|---|---|---|
| Focusing Method | Manual adjustment | Automatic real-time focusing |
| Inspection Speed | Depends on operator | Faster during repetitive inspection |
| User Experience | Requires frequent refocusing | Reduced operator workload |
| Best For | Static observation | Dynamic inspection and documentation |
For a more detailed comparison—including image quality, workflow efficiency, and application-specific recommendations—we’ll cover manual focus vs autofocus digital microscopes in a dedicated guide.
Key Benefits of an Autofocus Digital Microscope
Autofocus technology is more than a convenience feature. In industrial inspection environments, it can improve workflow efficiency, reduce operator fatigue, and help produce more consistent inspection results.
The following benefits explain why autofocus digital microscopes are becoming increasingly popular across electronics manufacturing, research laboratories, and quality control departments.
Faster Inspection and Higher Productivity
One of the biggest advantages of autofocus is its ability to eliminate repeated manual adjustments.
During PCB inspection or electronics assembly verification, operators often move between components with different heights. Each movement requires refocusing when using a traditional microscope.
An autofocus system performs this adjustment automatically, allowing inspectors to concentrate on identifying defects rather than continuously turning the focus knob.
For production environments where hundreds of boards may be inspected each day, reducing even a few seconds per inspection can significantly improve overall throughput.
Improved Inspection Consistency
Manual focusing depends heavily on individual experience and visual judgment.
Different operators may choose slightly different focal positions, leading to inconsistent inspection images and measurement results.
Autofocus minimizes these variations by applying the same focusing criteria throughout the inspection process.
This consistency is especially valuable when:
- Recording inspection images for quality reports
- Comparing products from different production batches
- Standardizing inspection procedures across multiple workstations
- Supporting traceability in regulated manufacturing environments
Reduced Operator Fatigue
Continuous manual focusing can become physically demanding during long inspection sessions.
Operators inspecting PCBs, connectors, or precision components for several hours each day often experience eye strain and repetitive hand movements caused by frequent focus adjustments.
By automatically maintaining image sharpness, autofocus systems allow engineers to spend more time evaluating product quality and less time adjusting microscope settings.
This contributes to a more comfortable inspection experience, particularly in laboratories and production facilities where microscopes are used continuously throughout the day.
Better Performance on Multi-Height Samples
Modern electronic products rarely have completely flat surfaces.
A typical PCB may include:
- Tall electrolytic capacitors
- Fine-pitch integrated circuits
- Shielding cans
- Connectors
- Heat sinks
- Through-hole components
Because these components vary significantly in height, maintaining focus manually can interrupt the inspection process.
Autofocus technology quickly adapts to these height differences, making transitions between inspection targets much smoother.
More Efficient Image Capture and Documentation
Industrial inspection increasingly requires digital documentation rather than simple visual observation.
Autofocus digital microscopes help ensure that captured images remain consistently sharp, improving the quality of:
- Inspection reports
- Failure analysis documentation
- Incoming quality records
- Customer quality reports
- Engineering presentations
Clear, repeatable images are particularly valuable when defects need to be reviewed by multiple departments or shared with customers and suppliers.
Common Applications of Autofocus Digital Microscopes
Autofocus technology has become widely adopted across industries that require frequent visual inspection, documentation, and dimensional verification.
Although every application has unique requirements, the ability to maintain sharp focus automatically provides significant advantages whenever inspection involves repeated movement or varying sample heights.
PCB Inspection and SMT Manufacturing
PCB inspection is one of the most common applications for autofocus digital microscopes.
Engineers routinely inspect:
- Solder joints
- Fine-pitch IC packages
- BGA surrounding areas
- PCB traces
- Vias
- Component alignment
- Surface contamination
Because component heights vary across the board, autofocus helps maintain image clarity without interrupting the inspection workflow.
Electronics Repair and Rework
Technicians performing PCB repair frequently switch between different inspection areas.
Typical tasks include:
- Solder bridge inspection
- IC replacement
- Connector repair
- Trace verification
- Pad condition evaluation
Autofocus enables faster transitions between inspection points, particularly when working under high magnification.
Semiconductor Inspection
Semiconductor devices often contain extremely small features with limited depth of field.
Applications include:
- Wafer inspection
- Packaging analysis
- Bond wire inspection
- Lead frame inspection
- Surface defect evaluation
In these applications, maintaining consistent focus helps engineers evaluate critical features more efficiently.
Precision Manufacturing
Autofocus digital microscopes are also widely used for inspecting precision mechanical parts, including:
- CNC-machined components
- Medical devices
- Precision molds
- Cutting tools
- Watch components
- Aerospace parts
Automatic focusing allows inspectors to move rapidly between different features while maintaining image clarity.
Scientific Research and Laboratories
Research laboratories frequently examine samples with complex surface geometries.
Examples include:
- Material science
- Failure analysis
- Biological engineering
- MEMS research
- Polymer analysis
Autofocus simplifies routine observation while ensuring that captured images remain suitable for publication or technical documentation.
How to Choose the Right Autofocus Digital Microscope
Not all autofocus microscopes offer the same level of performance.
When comparing different systems, engineers should evaluate more than autofocus speed alone.
Important considerations include:
Image Resolution
Higher-resolution sensors provide more detailed images, particularly when inspecting miniature defects.
Today, many industrial systems offer:
| Resolution | Typical Applications |
|---|---|
| 2K | Routine electronics inspection |
| 4K | PCB inspection, semiconductor analysis, precision measurement |
For applications requiring fine detail and accurate documentation, higher image resolution often delivers greater long-term value.
Optical Zoom Range
Digital zoom cannot replace high-quality optics.
A microscope with a continuous optical zoom lens maintains image quality across different magnification levels while preserving measurement accuracy.
Autofocus Stability
Fast autofocus is valuable, but stability is equally important.
Look for systems that maintain focus continuously during:
- Live observation
- Sample movement
- Magnification changes
- Long inspection sessions
Reliable autofocus reduces interruptions and improves overall inspection efficiency.
Measurement and Software Functions
Modern digital microscopes increasingly integrate:
- Image annotation
- Measurement tools
- Edge detection
- Image comparison
- Report generation
Selecting a microscope with comprehensive software capabilities can reduce the need for additional inspection equipment.
If you’re still comparing different microscope types, our comprehensive Digital Microscope Buying Guide explains the most important optical specifications, imaging technologies, and selection criteria to help you identify the right system for your application.
Future Expansion
As inspection requirements evolve, it is helpful to choose a microscope that supports future upgrades, such as:
- Larger monitors
- Motorized stages
- Image stitching
- Measurement software
- 3D observation modules
- Additional objective lenses
A scalable system provides greater flexibility without requiring complete equipment replacement.
Common Misconceptions About Autofocus Digital Microscopes
As autofocus technology becomes more common in industrial microscopy, several misconceptions still influence purchasing decisions. Understanding these differences can help engineers select the right inspection system for their specific applications.
Myth 1: Autofocus Is Only Useful for Beginners
This is one of the most common misconceptions.
In reality, experienced engineers often benefit the most from autofocus systems because they perform repetitive inspections for extended periods. Automatic focusing reduces interruptions, improves workflow efficiency, and helps maintain consistent inspection results across different operators.
Myth 2: Autofocus Is Slower Than Manual Focusing
Modern industrial autofocus systems are designed for continuous inspection rather than single-shot photography.
Motorized optics and optimized focusing algorithms can quickly restore image sharpness as the inspection target changes, often reducing the total inspection time compared with repeated manual adjustments.
Myth 3: Autofocus Reduces Image Quality
Image quality is determined primarily by the optical system, image sensor, illumination, and software—not by autofocus itself.
A high-quality autofocus microscope maintains optimal focus automatically while preserving the optical performance of the lens.
Myth 4: Autofocus Is Only Needed for PCB Inspection
Although PCB inspection is one of the largest application areas, autofocus technology is equally valuable for:
- Semiconductor inspection
- Precision machining
- Medical device manufacturing
- Materials research
- Failure analysis
- Electronics assembly verification
Any inspection task involving multiple heights or frequent repositioning can benefit from automatic focusing.
Why Autofocus Matters in Modern Electronics Manufacturing
Industry organizations such as IPC and SMTA have highlighted the increasing inspection challenges created by high-density electronic assemblies, finer component pitches, and more complex packaging technologies. As products continue to miniaturize, maintaining consistent focus across different component heights becomes increasingly difficult using conventional manual-focus systems.
Autofocus digital microscopes help address this challenge by improving inspection consistency, reducing repetitive manual adjustments, and enabling more efficient visual evaluation throughout electronics manufacturing and quality assurance workflows.
Conclusion
Autofocus digital microscopes have evolved from a convenient feature into an essential tool for modern industrial inspection.
As electronic assemblies become smaller, component densities continue to increase, and inspection standards become more demanding, maintaining consistent image quality through manual focusing alone becomes increasingly difficult.
By automatically maintaining optimal focus, autofocus digital microscopes improve inspection efficiency, reduce operator fatigue, and help produce more consistent documentation across different inspection tasks.
Whether inspecting PCB assemblies, semiconductor devices, precision mechanical components, or conducting laboratory research, selecting the right autofocus system should involve more than simply comparing image resolution. Optical quality, autofocus stability, illumination design, software capabilities, and future scalability all contribute to long-term inspection performance.
Understanding these factors allows engineers to choose a microscope that not only meets today’s inspection requirements but also supports future manufacturing and quality control challenges.
