Introduction
As PCB assemblies become smaller and more densely populated, visual inspection is becoming increasingly challenging. Fine-pitch ICs, BGA packages, QFN components, miniature passive devices, and high-density interconnects often create inspection scenarios where a traditional top-down view is no longer sufficient.
Many manufacturing defects are not necessarily hidden because of magnification limitations. Instead, they become difficult to identify because inspectors cannot easily observe the component from different viewing angles.
This is why many electronics manufacturers, SMT production facilities, repair centers, and quality control laboratories are adopting 3D microscopes with 360° viewing capability as part of their PCB inspection workflow.
Unlike conventional digital microscopes that only provide a flat overhead image, a 3D microscope allows operators to inspect solder joints, component leads, connectors, and electronic assemblies from multiple directions without constantly repositioning the PCB.
If you’re evaluating inspection systems for PCB quality control, our comprehensive guide to 3D microscopes for PCB inspection, SMT production, and EMS quality control provides a deeper look at available solutions and configurations.
Table of Contents
Which SMT Defects Are Easier to Detect with a 3D Microscope?
A 3D microscope with a 360° viewing system helps inspectors identify defects that are difficult to evaluate from a single top-down view.
The most common examples include:
- Solder Bridges
- Tombstoning
- Lifted Leads
- Insufficient Solder Wetting
- Component Misalignment
- Cold Solder Joints
- Fine-Pitch Package Defects
The primary advantage is not higher magnification. It is the ability to inspect electronic assemblies from multiple viewing angles, allowing operators to see details that may be obscured during conventional inspection.
Why Viewing Angle Matters in SMT Inspection
The Limitation of Traditional Top-Down Inspection
Most microscopes used in electronics manufacturing provide a vertical viewing angle.
While this works well for general observation, it often creates challenges when inspecting:
- Solder fillets
- Fine-pitch IC leads
- Connector pins
- QFN packages
- Reflective solder joints
- Dense component layouts
In many cases, operators must physically move the PCB multiple times to verify whether a suspected defect actually exists.
How a 3D Microscope Improves Inspection
A 3D microscope allows inspectors to rotate the viewing angle and observe the same feature from different perspectives.
Benefits include:
- Better visibility around component edges
- Easier solder joint inspection
- Reduced inspection time
- Improved defect recognition
- Better documentation for quality reports
- More consistent inspection results between operators
For SMT production environments, these advantages can significantly improve inspection efficiency and quality control consistency.
1. Solder Bridges
What Is a Solder Bridge?
A solder bridge occurs when excess solder unintentionally connects two adjacent conductors or component leads.
This defect can result in:
- Electrical shorts
- Functional failures
- Reliability problems
Why Traditional Inspection Can Miss It
On fine-pitch components, solder bridges may be partially hidden between adjacent leads.
Strong reflections from shiny solder surfaces can make identification even more difficult.
Why a 3D Microscope Works Better
A 3D microscope allows inspectors to observe the gap between adjacent leads from different angles.
This makes it easier to confirm whether solder is unintentionally connecting neighboring pins.
2. Tombstoning
What Is Tombstoning?
Tombstoning occurs when one side of a chip component lifts during the reflow process.
It is commonly found on:
- 0201 components
- 0402 components
- Small passive devices
Why Viewing Angle Is Critical
From a direct overhead view, the defect may appear less obvious.
In some cases, the lifted component can be partially hidden by surrounding features.
How a 3D Microscope Helps
By rotating the viewing angle, inspectors can quickly determine whether one side of the component has lifted away from the PCB surface.
This makes tombstoning defects easier to identify and document.
3. Lifted Leads
Common Causes
Lifted leads may result from:
- Improper soldering
- Mechanical stress
- Handling damage
- Component deformation
These defects are frequently found on:
- QFP packages
- SOP packages
- Fine-pitch ICs
Inspection Challenges
A lead that is slightly lifted may not be obvious when viewed only from above.
Benefits of Multi-Angle Inspection
Using a 3D microscope, inspectors can observe the relationship between the lead and the pad from multiple directions.
This helps verify whether the lead is properly seated or partially separated from the PCB surface.
4. Insufficient Solder Wetting
Why It Matters
Proper solder wetting is essential for long-term electrical and mechanical reliability.
Poor wetting can increase the risk of intermittent failures and weak solder joints.
Why Traditional Inspection Has Limitations
A top-down image may not always reveal how well solder has flowed around the lead or termination.
Advantages of a 3D Microscope
Multi-angle observation makes it easier to examine solder coverage, solder fillet appearance, and joint formation around the component.
5. Component Misalignment
What Is Component Misalignment?
Component misalignment occurs when an electronic component is not positioned correctly on its designated PCB pads during assembly.
Common examples include:
- Shifted chip resistors
- Offset capacitors
- Skewed IC packages
- Connector positioning errors
Why Misalignment Can Be Difficult to Evaluate
In dense PCB layouts, neighboring components can partially obstruct the inspection area.
A top-down image may confirm the component’s presence but may not clearly reveal subtle positioning deviations.
How a 3D Microscope Improves Inspection
A 3D microscope enables inspectors to view the component from multiple directions, making it easier to verify alignment relative to surrounding pads, traces, and neighboring components.
This is especially valuable during SMT process validation and first article inspection (FAI).

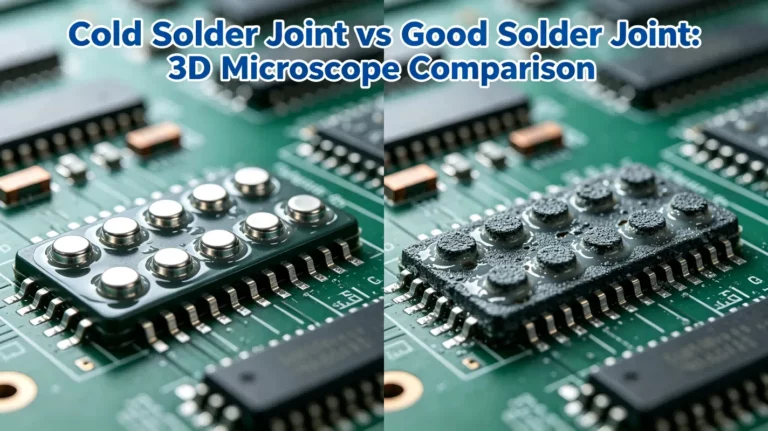

6. Cold Solder Joints
What Is a Cold Solder Joint?
A cold solder joint occurs when solder fails to properly melt and bond during the reflow or soldering process.
Potential consequences include:
- Intermittent electrical connections
- Reduced mechanical strength
- Premature product failure
Why Traditional Inspection May Be Inconsistent
Cold solder joints often exhibit subtle visual characteristics such as:
- Dull appearance
- Irregular surface texture
- Poor solder flow
These indicators may not always be obvious from a single viewing angle.
Why Multi-Angle Viewing Helps
A 3D microscope allows inspectors to examine solder joints from different perspectives, making surface irregularities easier to identify.
This improves consistency when evaluating solder quality during both production and rework operations.
7. Fine-Pitch Package Defects
Common Fine-Pitch Components
Modern electronics frequently utilize:
- QFN packages
- QFP packages
- SOP packages
- Fine-pitch connectors
- Miniature electronic modules
As lead spacing decreases, inspection becomes significantly more challenging.
Typical Inspection Problems
Inspectors often encounter:
- Hidden solder bridges
- Lead deformation
- Poor solder wetting
- Pin alignment issues
Many of these defects become difficult to confirm using only a top-down image.
Why a 3D Microscope Is Effective
The ability to rotate the viewing angle provides greater visibility around package edges and lead structures.
This makes defect verification faster and more reliable during SMT quality control and repair workflows.
Traditional Digital Microscope vs 3D Microscope for SMT Inspection
| Inspection Factor | Traditional Digital Microscope | 3D Microscope with 360° Viewer |
|---|---|---|
| Top-Down Inspection | Excellent | Excellent |
| Multi-Angle Viewing | Limited | Excellent |
| Solder Joint Visibility | Moderate | Excellent |
| Fine-Pitch Component Inspection | Moderate | Excellent |
| PCB Rework Inspection | Good | Excellent |
| SMT Defect Verification | Good | Excellent |
| Inspection Efficiency | Moderate | High |
| Operator Comfort | Moderate | High |
Key Takeaway
The biggest advantage of a 3D microscope is not additional magnification.
Instead, it is the ability to inspect PCB assemblies from multiple viewing angles, allowing inspectors to identify defects that may otherwise be difficult to confirm.
Why 3D Microscopes Are Becoming More Common in SMT Quality Control
As electronic assemblies continue to shrink, inspection requirements become increasingly demanding.
According to industry organizations such as IPC, defect prevention and early defect detection remain critical factors in reducing manufacturing costs and improving product reliability.
For this reason, many electronics manufacturers are incorporating advanced visual inspection tools into their SMT quality control processes.
A 3D microscope provides:
- Better defect visibility
- Faster inspection workflows
- Improved operator confidence
- More consistent quality evaluations
- Enhanced inspection documentation
For organizations focused on PCB assembly quality, it has become an increasingly valuable inspection tool.
For a deeper look at inspection workflows used in modern electronics manufacturing, explore our guide to SMT and THT component inspection solutions, covering common inspection challenges and recommended microscopy approaches.
Conclusion
Not all SMT defects are difficult to magnify.
Many are difficult to see because inspectors are limited to a single viewing angle.
This is where a 3D microscope provides a significant advantage.
By enabling 360° observation of PCB assemblies, solder joints, connectors, and electronic components, a 3D microscope helps inspectors identify defects more quickly and with greater confidence.
Whether used for SMT production, PCB quality control, failure analysis, or electronics repair, multi-angle inspection can improve visibility, consistency, and inspection efficiency.
If you are evaluating inspection equipment for electronics manufacturing, understanding the differences between traditional digital microscopes and 3D viewing systems is an important first step.
For additional guidance on selecting the right inspection system, see our comprehensive Digital Microscope Buying Guide, which compares different microscope configurations, imaging technologies, and application requirements.
